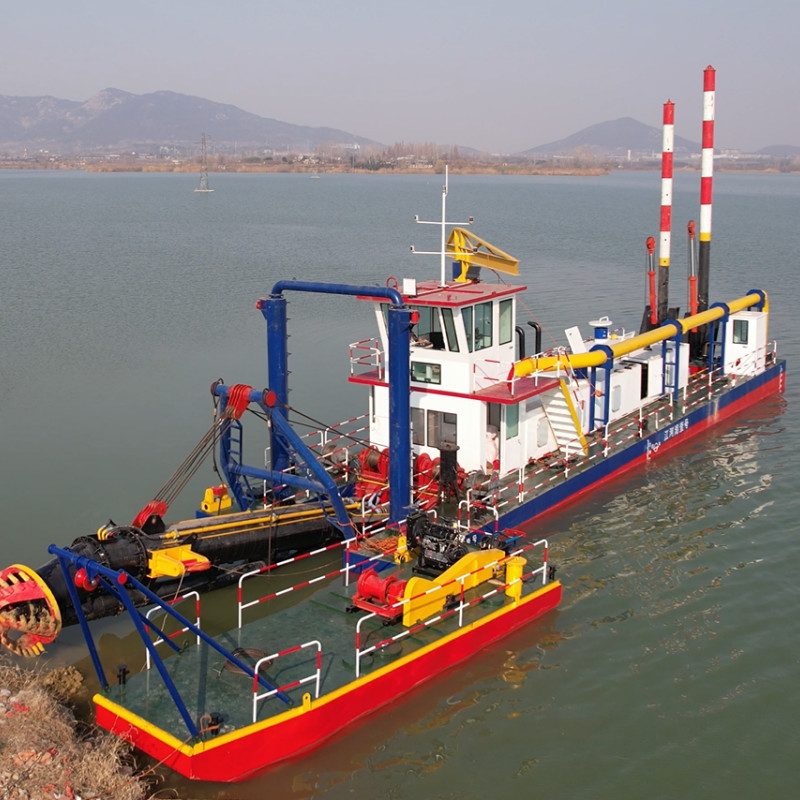

Large 26 Inch Suction River Dredging Equipment Vessel

Name: Large 26 Inch Suction River Dredging Equipment Vessel
Brand: yongsheng
Price: 2250000 USD

Quality Large 26 Inch Suction River Dredging Equipment Vessel wholesale

Brand Name : yongsheng

Model Number : csd650

Place of Origin : china

MOQ : 1

Price : 2250000usd/piece

Payment Terms : T/T,L/C

Supply Ability : 100piece/Year

Delivery Time : 60 work days

Packaging Details : Container

Customized : customized

Condition : new

Warranty : 1 year

Water Flow : 7000m3/h

Solid Capacity : 1400cbm/h

Max.Dredging Depth 45° : 18m

Discharge Distance : 1800m

Dredger After Assembly : 50*11*3.2m Length*Width*Depth

Dredger Structure : Dismantle Type and Can Be Assembly in Working Site

Average Draught : 2m

Diameter Discharge Pipe : 650mm/26inch

Total Power : 3705 Kw

Main Engine : 2,685 Kw

Auxiliary Engine Power : 970 Kw

Generator : 50kw

Hydraulic Cutter Powerr : 660kw

Contact Now

Dredger Equipment Suction Dredger Vessel for Sale

Cutter suction dredger is a kind of ship that is widely used in beach dredging projects. It uses the

front end of the suction pipe. The cutter suction pipe is equipped with a rotating cutter device to

cut and agitate the river bottom sediment, and then through the suction pipe, the Mud, mud transport,

mud unloading and other work processes can be completed continuously at one time.

Large 26 Inch Suction River Dredging Equipment Vessel

Product Parameters

*YSCSD650* *26 inch solid* *capacity* 1400 *cbm/h* *hydraulic cutter suction dredger*
Technical specifications
Water flow	7,000 m3/h
Solid capacity	1400cbm/h
Max. dredging depth 45°	18 m
Discharge distance	1,800 m
LOA	50 m
Dredger after assembly	50113.2m Length* width* depth
Dredger structure	Dismantle type and can be assembly in working site
Average draught	2 m
Diameter discharge pipe	650 mm/26 inch
Main Engine	2,685 kw
Rotate speed	1800 r/min
Auxiliary engine power	970 kw
Generator	50 kw
Hydraulic cutter power	660 kw
Total power	3705 kw

Model list for hydraulic cutter suction dredger
Model	Inch	Diameter pipe	Water flow	Solid capacity	Total power	Dredging depth	Discharge distance
YSCSD150	6 Inch	150 mm	260 m3/h	30 cbm/h	102 KW	4m	600 m
YSCSD200	8 Inch	200 mm	600 m3/h	80 cbm/h	213 KW	6m	800 m
YSCSD250	10 inch	250 mm	1,000 m3/h	160 cbm/h	367 KW	8m	1,100 m
YSCSD300	12 inch	300 mm	1,500 m3/h	240 cbm/h	591 KW	10 m	1,100 m
YSCSD350	14 inch	350 mm	2,400 m3/h	360 cbm/h	971 KW	12m	1,200 m
YSCSD400	16 Inch	400 mm	3,000 m3/h	500 cbm/h	1,057 KW	14m	1,400 m
YSCSD450	18 Inch	450 mm	3,500 m3/h	700 cbm/h	1,462 KW	15m	1,500 m
YSCSD500	20 Inch	500 mm	3,800 m3/h	760 cbm/h	1,648 KW	15m	1,600m
YSCSD600	24 Inch	600 mm	6,000 m3/h	900 cbm/h	2,511 KW	15m	1,800 m
YSCSD650	26 Inch	650 mm	7,000 m3/h	1,400 cbm/h	3,705 KW	Max.18m	1,800m

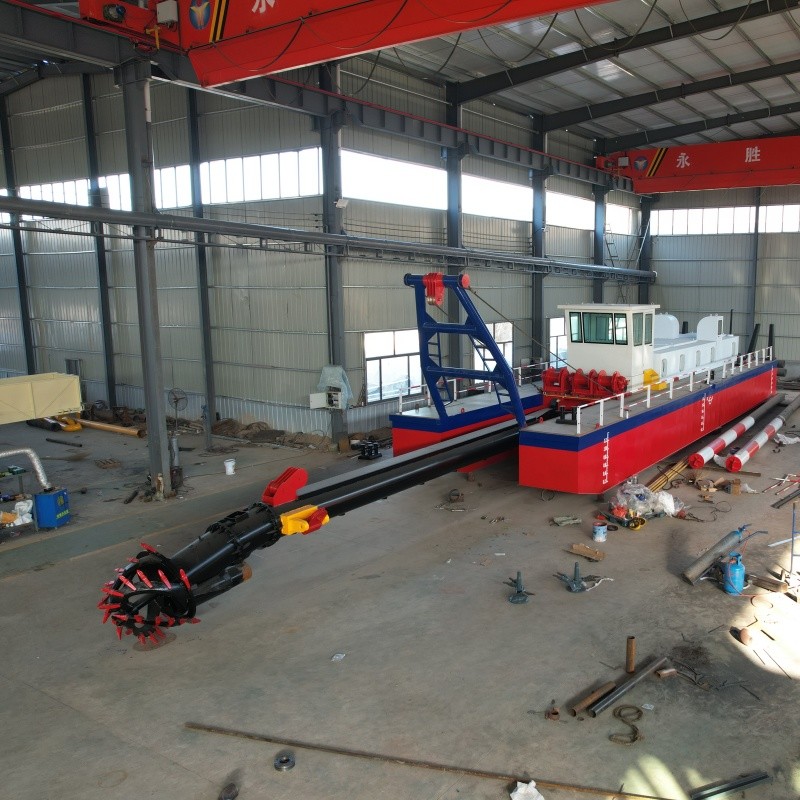

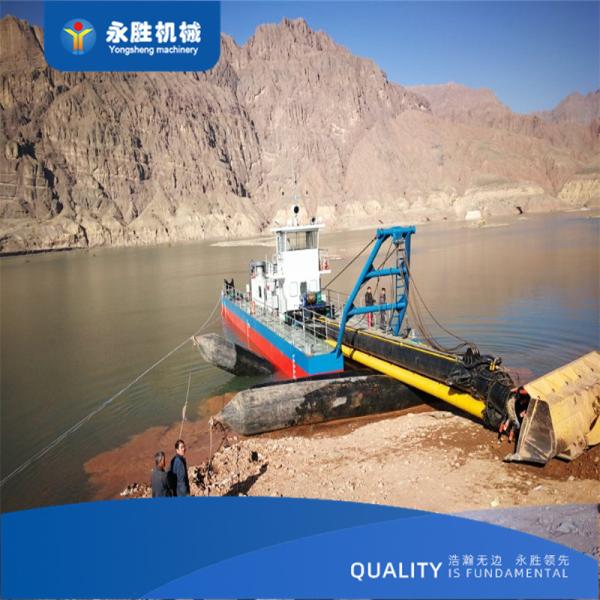

Large 26 Inch Suction River Dredging Equipment Vessel

Large 26 Inch Suction River Dredging Equipment Vessel
Specfication
1.Fully road transportable and dismountable.
2.The vessel is constructed an designed for operations inshore.
3.The complete dredger consists of one main pontoon and four side pontoons.
4.Side pontoons are mounted to the main pontoon by heavy duty steel eyes and
pins at the bottom of the hull with bolt connection at deck level.

Features
1.Easily assemble and dismanting.
2.Transported by road ,rail or sea,one man operation.
3.Assembled with advanced hydraulic system and water-cooling diesel engine
4.Spare parts are available. Completely tested before delivery.
5.The dredgers can be made according to customers' request.

-Service
·Design and Engineering
·Fully Tested Before Delivery
·On-Site Installation Work
·Dredger Operation Training
·Operate and Consultancy
·Maintain
·Upgrade

Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
