7000m3/H 26 Inch Suction Dredger Ship High Efficiency

Brand Name : yongsheng

Model Number : YSCSD650

Place of Origin : shandong

MOQ : 1

Price : 1000000$

Payment Terms : L/C,D/P,D/A,T/T,Western Union,MoneyGram

Delivery Time : 70days

Packaging Details : container

Water flow : 7,000 m3/h

Solid capacity : 1400cbm/h

Max. dredging depth 45° : 18 m

Dredger after assembly : 50*11*3.2m Length* width* depth

Average draught : 2 m

Main Engine : 2,685 kw Cummins engine

Contact Now

7000m3/H Cutter Suction Dredger with High Efficiency for Sale in Saudi ArabiaDescription

Cutter Suction Dredger is a common and important engineering ship, widely used in the fields of channel

dredging, port construction, land reclamation, etc.
Working Principle
The working principle of the cutter suction dredger is based on mechanical cutting and hydraulic transportation.

The sediments such as sand and rocks on the bottom of the water are cut and crushed by the rotating

cutter device, and mixed with water to form mud. Then, the suction generated by

the mud pump on the ship is used to suck the mud through the mud suction pipe, and then transported

to the designated location through the mud discharge pipe, such as the yard on the shore or other

storage areas.

parameters

YSCSD650 26 inch solid capacity 1400 cbm/h hydraulic cutter suction dredger

Technical specifications

Water flow

7,000 m3/h

Solid capacity

1400cbm/h

Max. dredging depth 45°

18 m

Discharge distance

1,800 m

LOA

50 m

Dredger after assembly

50*11*3.2m Length* width* depth

Dredger structure

Dismantle type and can be assembly in working site

Average draught

2 m

Diameter discharge pipe

650 mm/26 inch

Main Engine

2,685 kw Cummins engine

Rotate speed

1800 r/min

Auxiliary engine power

970 kw Cummins engine

Generator

50 kw

Hydraulic cutter power

660 kw

Total power

3705 kw

The cutter suction dredger can be used with many other ancillary devices,including sand processing

equipment:stone crusher,sand screening machines,and sand washing machines,and mineral processing

equipment:iron separation equipment,gold mining and equipment,etc.

The above technical parameters are for reference only,specific device configuration depends on the

conditions of each project,customer and technical requirements.

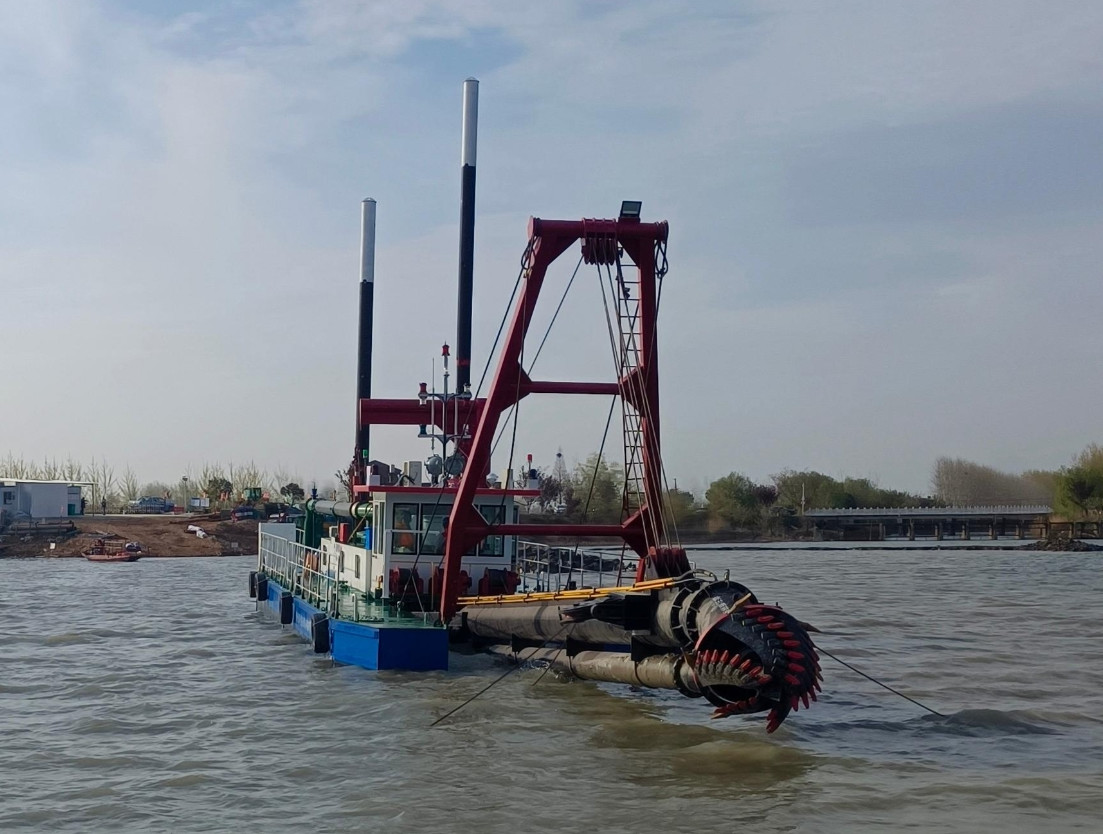

7000m3/H 26 Inch Suction Dredger Ship High Efficiency

7000m3/H 26 Inch Suction Dredger Ship High Efficiency

after sales service

1. We also have supporting facilities for the cutter suction dredger, such as mud discharge pipelines,
mud pump accessories, pipeline floats, etc. The accessories on the dredger are all reserved in stock
to ensure timely shipment during later use!

2. When customers encounter quality problems during the use of the cutter suction dredger in the
later
stage, we will first provide video guidance to solve the problem as soon as possible. Then, for major
quality issues, we will arrange for technical personnel to go to the site as soon as possible to ensure
the customer's normal use of the dredger.

3. We will also conduct regular follow-up visits to customers to gain a better understanding of the dredger!
