Yongsheng Brand Cutter Suction Dredger Customized Size with Best Priceintroduction
A Cutter Suction Dredger (CSD) is a highly efficient and versatile piece of equipment used in
dredging operations to excavate and remove sediment, soil, and other materials from underwater
environments. It is widely employed in various applications, including harbor maintenance, land
reclamation, river dredging, and the construction of canals and pipelines.
parameters
| Model list for hydraulic cutter suction dredger |
| Model | Inch | Diameter pipe | Water flow | Solid capacity | Total power | Dredging depth | Discharge distance |
| YSCSD150 | 6 Inch | 150 mm | 260 m3/h | 30 cbm/h | 102 KW | 4 m | 600 m |
| YSCSD200 | 8 Inch | 200 mm | 600 m3/h | 80 cbm/h | 213 KW | 6 m | 800 m |
| YSCSD250 | 10 inch | 250 mm | 1,000 m3/h | 160 cbm/h | 367 KW | 8 m | 1,100 m |
| YSCSD300 | 12 inch | 300 mm | 1,500 m3/h | 240 cbm/h | 591 KW | 10 m | 1,100 m |
| YSCSD350 | 14 inch | 350 mm | 2,400 m3/h | 360 cbm/h | 971 KW | 12 m | 1,200 m |
| YSCSD400 | 16 Inch | 400 mm | 3,000 m3/h | 500 cbm/h | 1,057 KW | 14 m | 1,400 m |
| YSCSD450 | 18 Inch | 450 mm | 3,500 m3/h | 700 cbm/h | 1,462 KW | 15 m | 1,500 m |
| YSCSD500 | 20 Inch | 500 mm | 3,800 m3/h | 760 cbm/h | 1,648 KW | 15 m | 1,600m |
| YSCSD600 | 24 Inch | 600 mm | 6,000 m3/h | 900 cbm/h | 2,511 KW | 15 m | 1,800 m |
| YSCSD650 | 26 Inch | 650 mm | 7,000 m3/h | 1,400 cbm/h | 3,705 KW | Max.18m | 1,800m |
Operation
The operation of a CSD begins with the positioning of the vessel at the dredging site. Once
anchored in place using the spuds, the cutter head is lowered to the seabed. As the cutter head
rotates, it breaks up the material, which is then sucked up through the suction pipe by the dredge

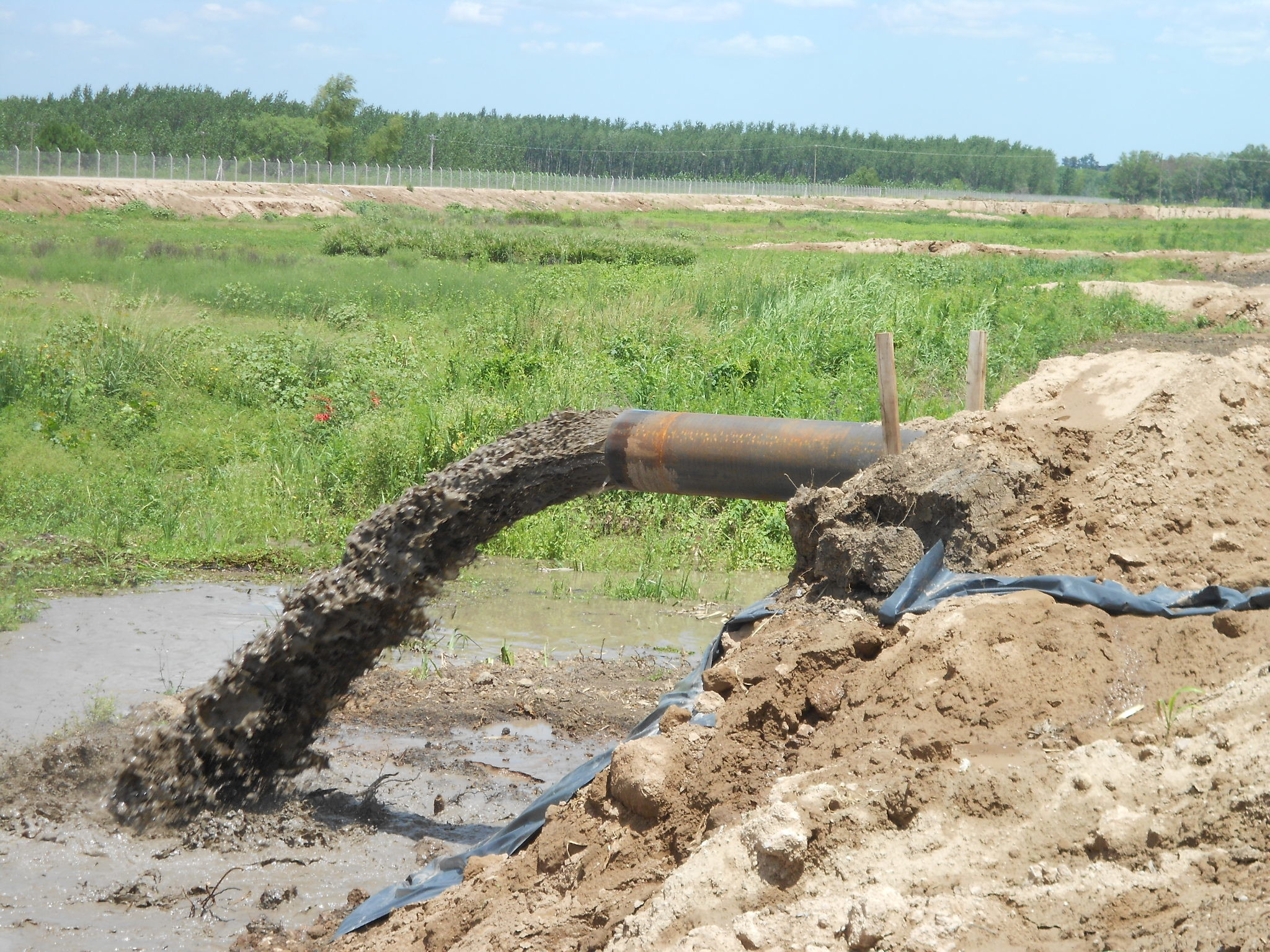

pump. The material is transported through a discharge pipeline to a designated location, where
it is deposited.
The swing system allows the cutter head to move in an arc, enabling the dredger to cover a
wide area. After completing a pass, the dredger is repositioned using the spuds, and the
process is repeated until the desired depth or volume of material has been removed.
