Sand Mining Cutter Suction Dredger Equipment For Sale

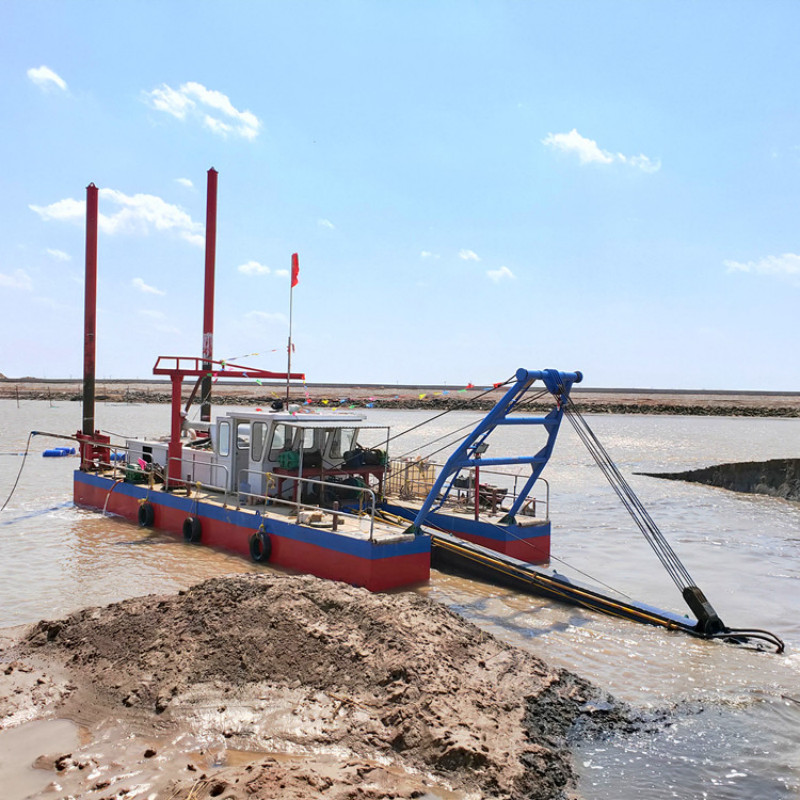

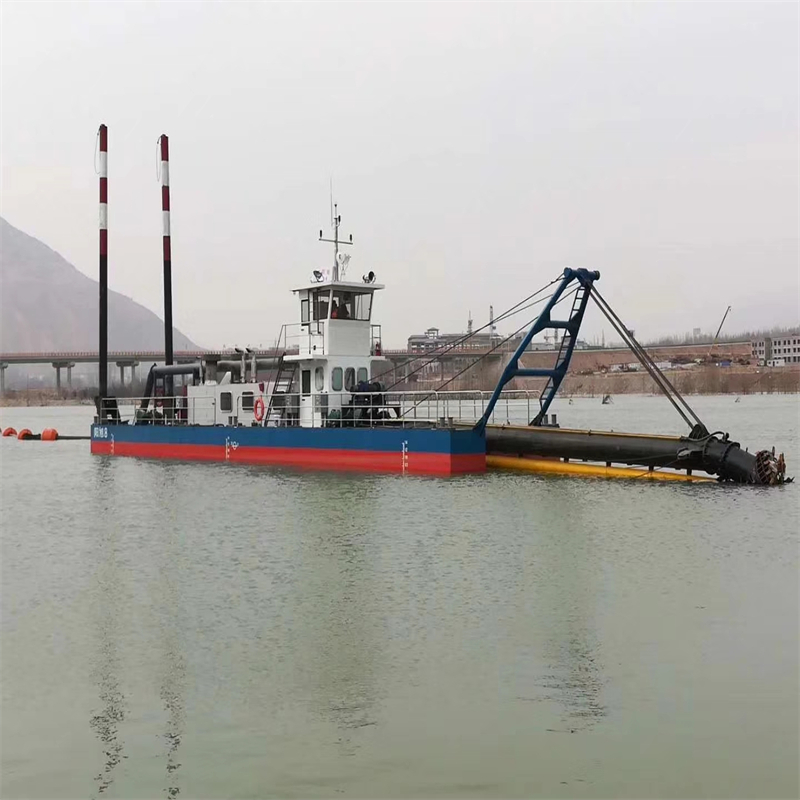

Cutter suction dredger is a kind of ship that is widely used in beach dredging projects. It uses
the front end of the suction pipe. The cutter suction pipe is equipped with a rotating cutter device
to cut and agitate the river bottom sediment, and then through the suction pipe, the Mud, mud
transport, mud unloading, and other work processes can be completed continuously at one time.
It is a high-efficiency, low-cost dredger and a good underwater excavating machine. The split
structure makes the installation and transportation of the cutter suction boat simpler and more
flexible, can be easily transported to any location. With its robust design, it is the preferred choice
in its class due to low maintenance, excellent fuel consumption, and high productivity levels.
| Model list for hydraulic cutter suction dredger |
| Model | Inch | Diameter pipe | Water flow | Solid
capacity | Total power | Dredging depth | Discharge distance |
| YSCSD150 | 6 Inch | 150 mm | 260 m3/h | 30 cbm/h | 102 KW | 4m | 600 m |
| YSCSD200 | 8 Inch | 200 mm | 600 m3/h | 80 cbm/h | 213 KW | 6m | 800 m |
| YSCSD250 | 10 inch | 250 mm | 1,000 m3/h | 160 cbm/h | 367 KW | 8m | 1,100 m |
| YSCSD300 | 12 inch | 300 mm | 1,500 m3/h | 240 cbm/h | 591 KW | 10 m | 1,100 m |
| YSCSD350 | 14 inch | 350 mm | 2,400 m3/h | 360 cbm/h | 971 KW | 12m | 1,200 m |
| YSCSD400 | 16 Inch | 400 mm | 3,000 m3/h | 500 cbm/h | 1,057 KW | 14m | 1,400 m |
| YSCSD450 | 18 Inch | 450 mm | 3,500 m3/h | 700 cbm/h | 1,462 KW | 15m | 1,500 m |
| YSCSD500 | 20 Inch | 500 mm | 3,800 m3/h | 760 cbm/h | 1,648 KW | 15m | 1,600m |
| YSCSD600 | 24 Inch | 600 mm | 6,000 m3/h | 900 cbm/h | 2,511 KW | 15m | 1,800 m |
| YSCSD650 | 26 Inch | 650 mm | 7,000 m3/h | 1,400 cbm/h | 3,705 KW | Max.18m | 1,800m |
Features:
a. One man operation. The most advanced Siemens PLC control system.
b. New highly effective cutter driven system
c. Reliable hydraulic system.
d. Fresh water cooling system.
e. Completely assembled and fully tested before delivery.
f. Very simple and fast assembly with experienced engineers.
g. Standard design, allowing short delivery times.
h. Standard spare parts available from stock.
i. Designed as standard to qualify for Coastal Waters Certificate.
j. Optional equipment available.
FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
Product Tags:
|
|

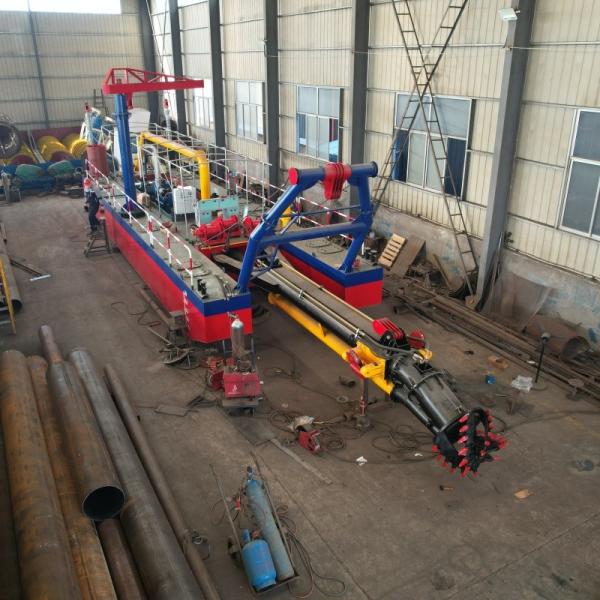

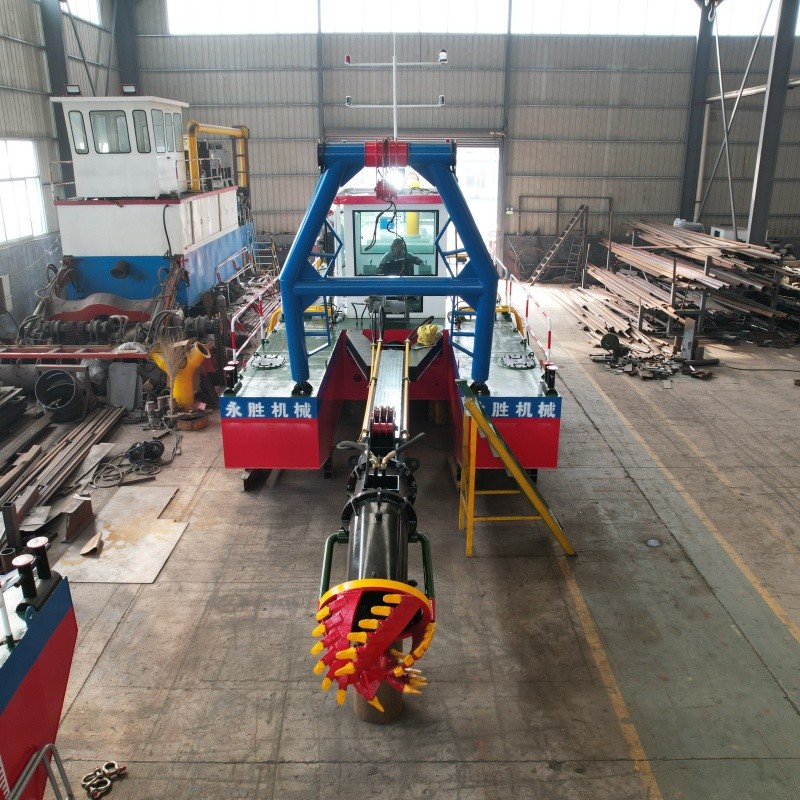

Sand Mining 500mm 20 Inches Cutter Suction Dredger Equipment Images
|
