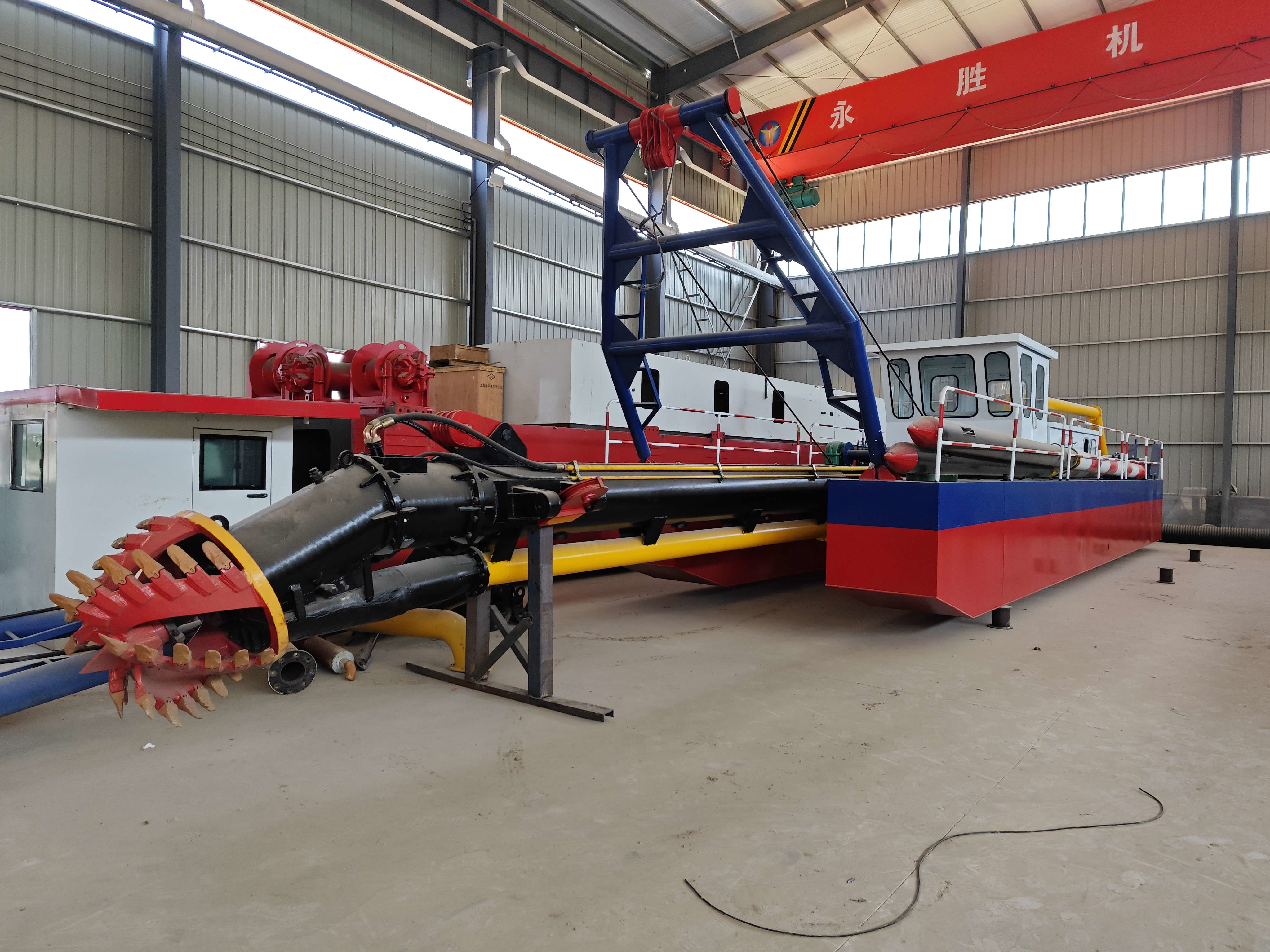

16 inch Powerful Cutter Suction Dredger for Dredging
product description
The cutter suction dredger is a highly efficient underwater excavation equipment. It utilizes a rotating
cutter head to loosen underwater sediments, while a powerful dredge pump transports the mixture
through pipelines to designated areas. This equipment is widely used in channel dredging, port
construction, land reclamation, and other marine engineering projects.
product parameters
| YSCSD400 solid capacity 500 cbm/h hydraulic cutter suction dredger |
| Technical specifications |
| Water flow | 2500-3000 m3/h |
| Solid capacity | 500 cbm/h |
| Max. dredging depth 45° | 14 m |
| Discharge distance | 1,400 m |
| LOA | 41 m |
| Dredger after assembly | 41*6.8*1.8 m Length* width* depth |
| Dredger structure | Dismantle type and can be assembly in working site |
| Average draught | 1.1 m |
| Diameter discharge pipe | 400mm/16inch |
| Main Engine | 746 kw Cummins engine |
| Rotate speed | 1800 r/min |
| Auxiliary engine power | 287 kw Cummins engine |
| Generator | 16 kw |
| Hydraulic cutter power | 120 kw |
| Total power | 1,057 kw |
Key Features
High Efficiency
Integrated cutting and pumping system ensures continuous operation with high productivity.
Precision Control
Equipped with GPS positioning and depth sensors for accurate excavation control.
Strong Adaptability
Suitable for various seabed materials, including silt, clay, sand, and even mildly rocky surfaces.
Cost-Effective & Eco-Friendly
Low energy consumption reduces operational costs; enclosed pipeline transport minimizes sediment
dispersion and water pollution.
Common Applications
-
Waterway Maintenance: Removing silt to ensure navigability
-
Port Expansion: Dredging basins and foundation trenches
-
Land Reclamation: Pumping sand for coastal development
-
Sand Mining: Extracting riverbed aggregates
